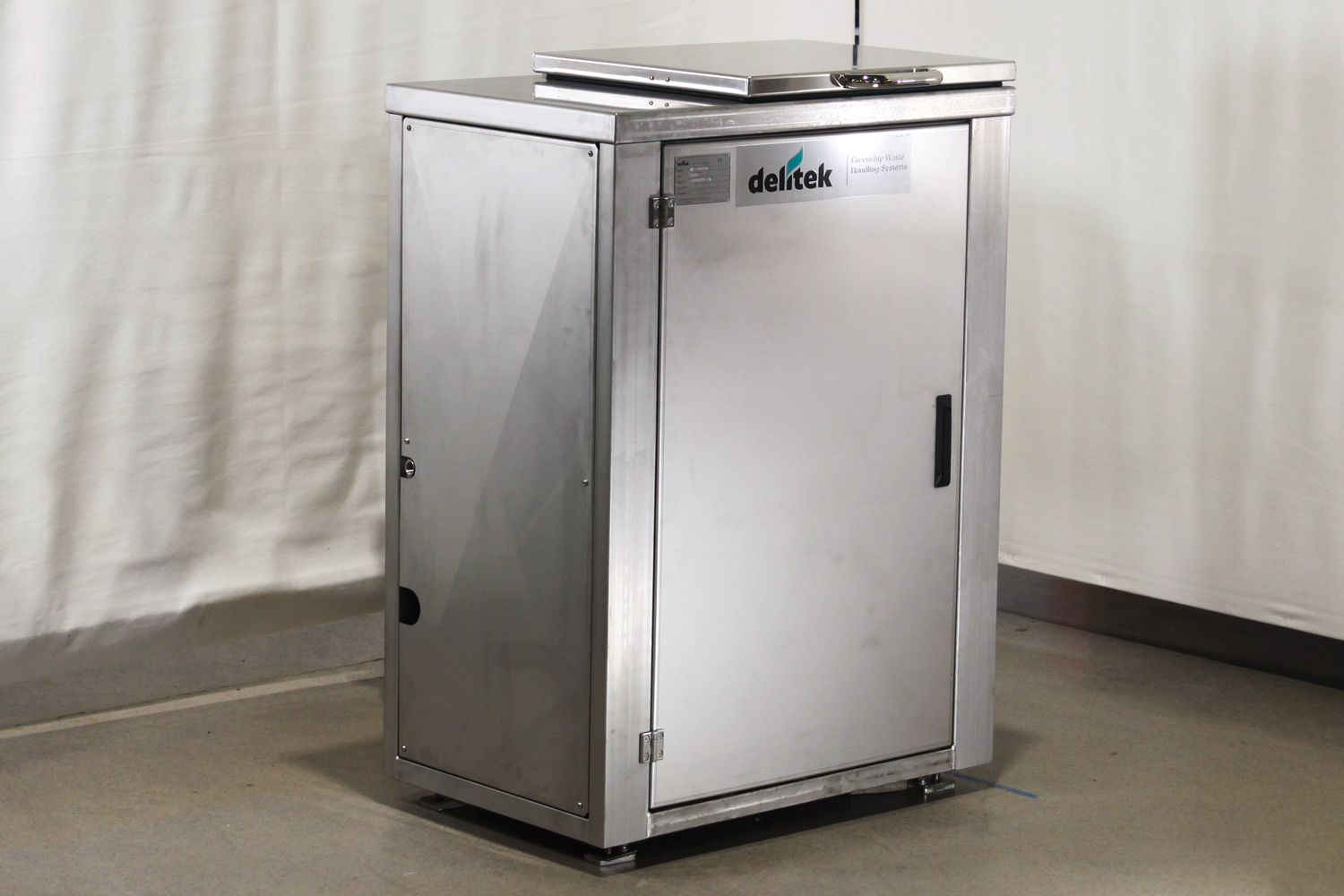

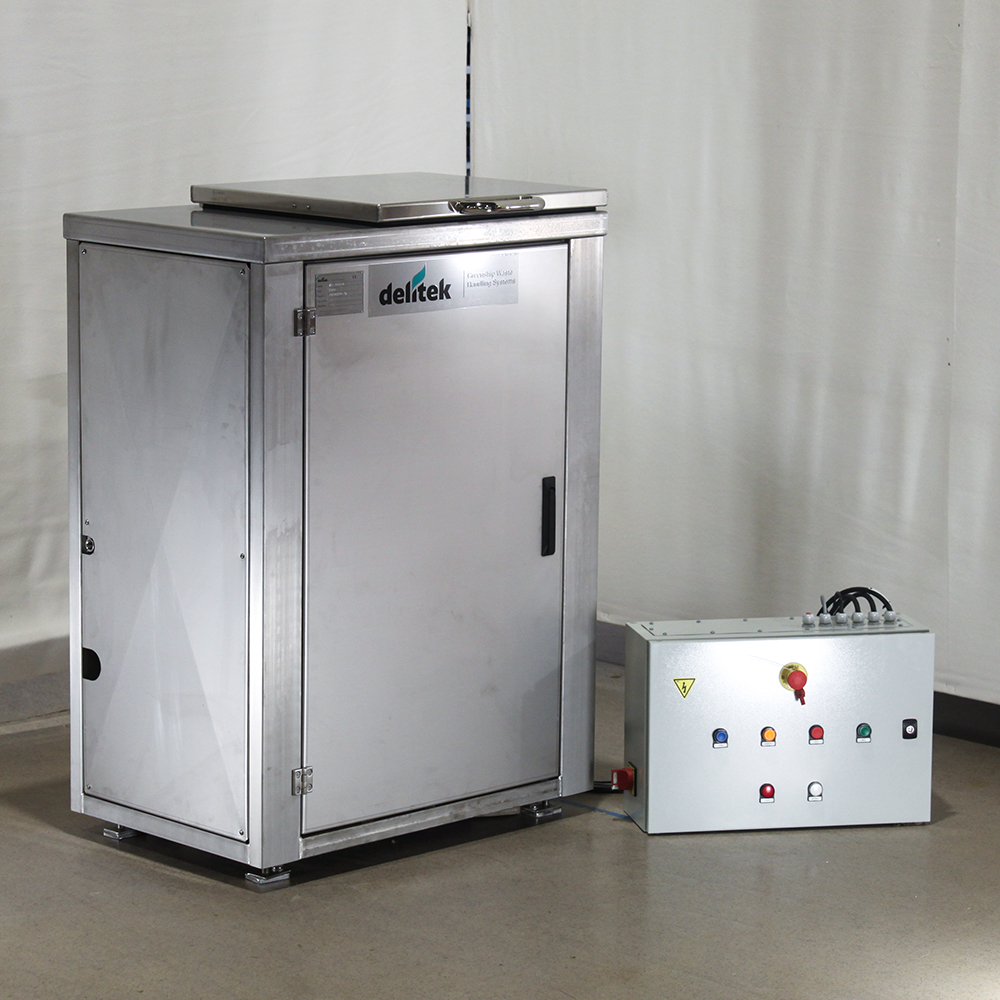

DT-3030SR
The DT-3030SR is a heavy-duty food waste disposer specifically designed for processing tough food waste onboard ships and offshore installations. The disposer allows for efficient processing of large bones, animal skins, and long fibrous materials that can often cause blockages and motor overload alarms in standard disposers.
Product Description
The discharged food waste slurry can be conveyed to an intermediate holding tank or directly discharged in compliance with MARPOL regulations.
The DT-3030SR features a heavy-duty shredder for pre-treatment of food waste, as well as a quality grinding unit with built in hardness from a special cast steel alloy for final processing.
The DT-3030SR can be integrated with both gravity drain- (DeliGrav) and vacuum conveying (DeliVac) systems. This flexibility ensures seamless integration into a variety of waste management setups.
Key Benefits
- Heavy Duty Food waste shredder station, for TOUGH waste.
- For connection to both vacuum- or gravity fed food waste systems.
- Very powerful unit in a compact design.
- 2-step treatment (Coarse / Fine grinding).
Technical Specification
- Material: Stainless steel AISI 316L
- Capacity: 700kg/h
- Dimensions (W x D x H*): 920mm x 658mm x 1250*mm. * With lid closed. Max height with lid fully open: 1836mm
- Voltage: 380~440V / 3Ph, 50~60Hz
- Power consumption: 5,5kW
- Shredder torque Weight: 1900Nm. 414 kg.
