DT-200PN

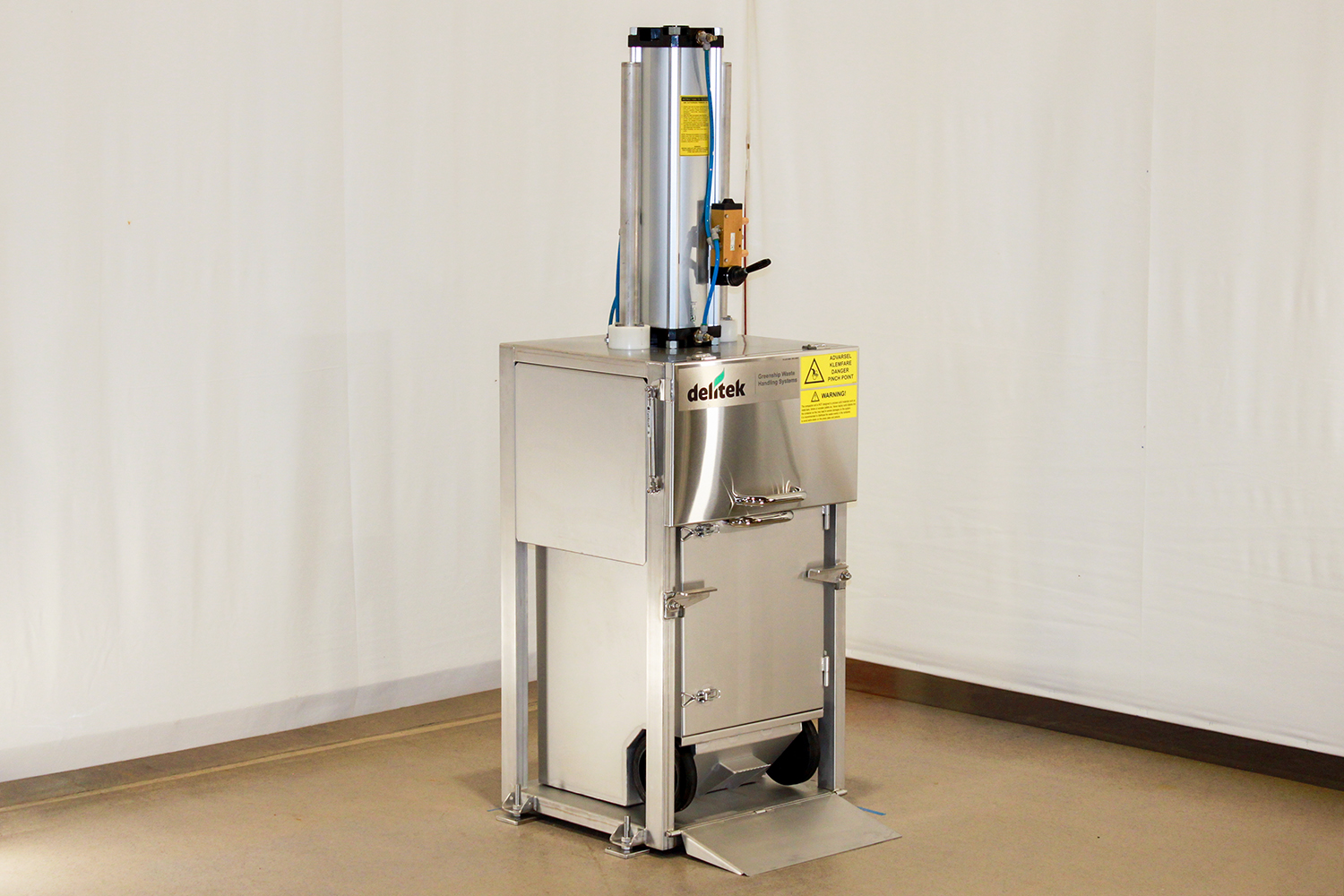

DT-200PN waste compactor is specifically designed for use onboard ships and offshore installations. Manufactured in stainless steel, this compactor is durable and well-suited for marine environments. One of the key features of the DT-200PN is its pneumatic-driven operation, eliminating the need for hydraulic oil. It comes equipped with a wheeled C-200 container for efficient waste logistics.
Product Description
The modular design allows for easy source segregation according to MARPOL guidelines by adding extra containers for different waste categories.
The DT-200PN can be used as a standalone unit or in combination with other DT200series products, as the C-200 container is interchangeable between them. For maximum efficiency, combining the waste compactor with a DT-230SR shredder ensures extreme volume reduction and reduced waste handling costs.
All Delitek Equipment are equipped with powerful drives to ensures quick and effective waste processing.
The design is based on standard components that a ships engineer can easily deal with in the case something needs to be replaced.
Key Benefits
- Stainless steel design for indoor and outdoor placement.
- Ideal for indoor installation onboard vessels and retrofit.
- Compaction directly into HD Plastic bags for easy and safe deployment of waste.
- Delitek Products are verified for use in marine and offshore industries by DNV.

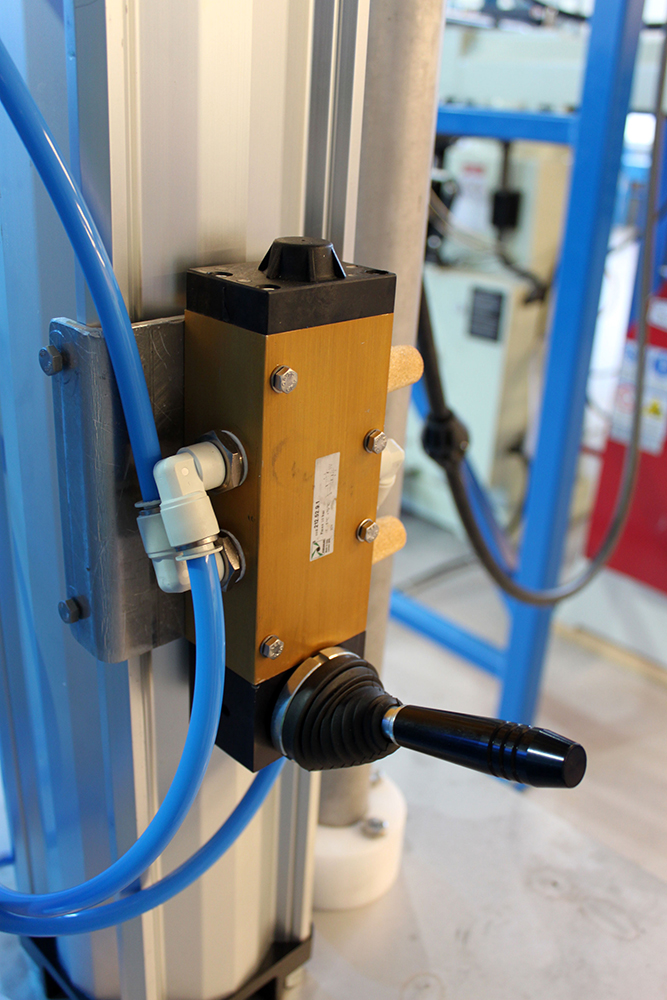

- Equipped with pneumatic piston.
- Easy installation and operation (Plug & Play).
- Alternative version available with 3 tons press force.
- X/ATEX version with DNV unit certification available.
- EX/ATEX version with DNV unit certification available.
Technical Specification
- Material: Stainless steel AISI 304 or AISI 316
- Capacity: 0,2 m3
- Loading opening (W x H): 550mm x 230mm
- Compaction force (Max): 1500 / 3000 Kg
- Dimensions (W x D x H): 760mm x 699mm x 1983mm
- Weight (Incl. container): 156,3 Kg
- Noise level: <78dB Max
