DT-1000MC

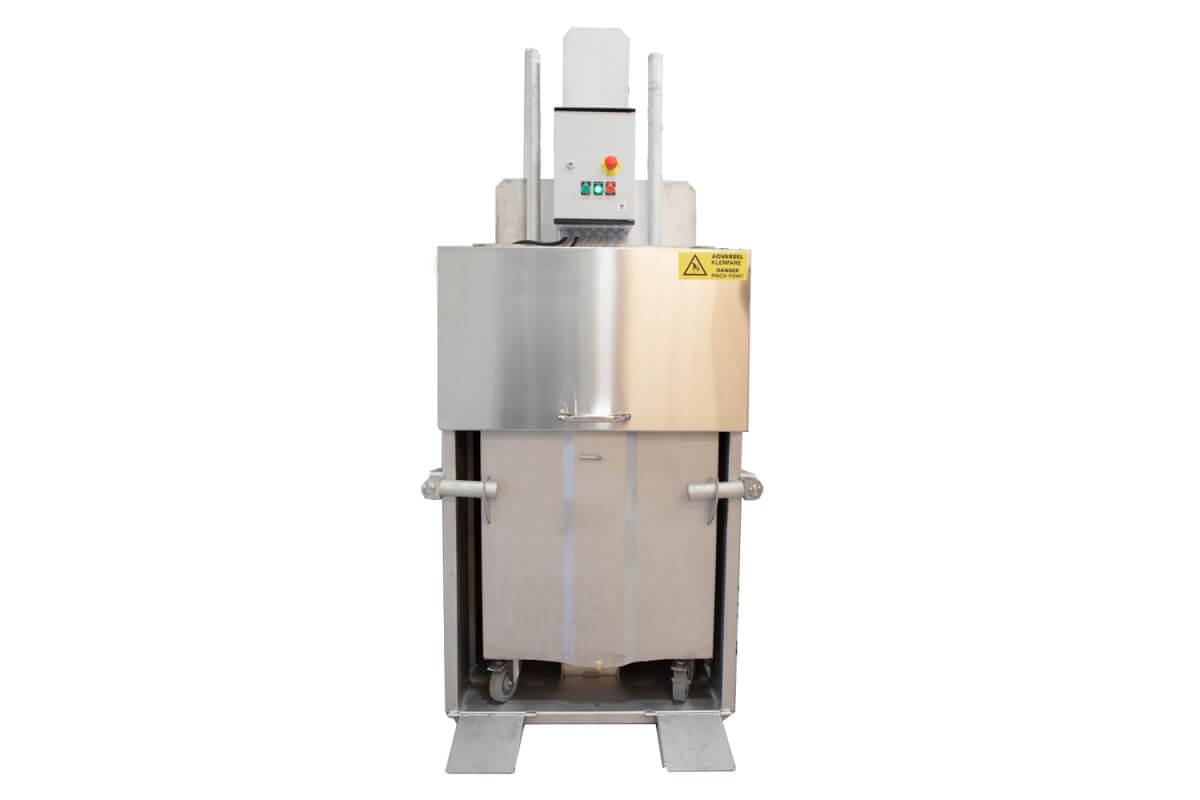

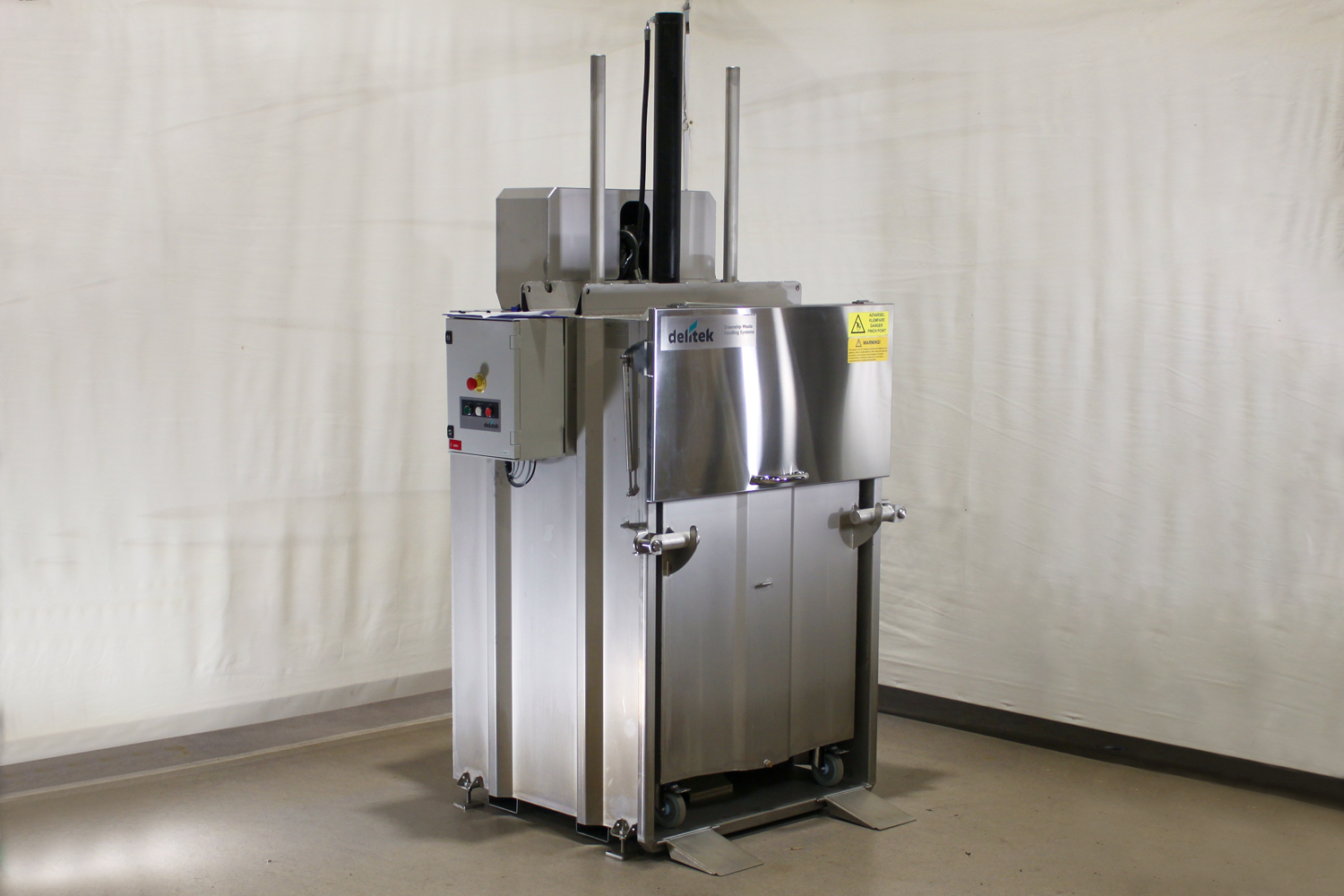

The DT-1000MC waste compactor is designed specifically for use onboard ships and offshore installations. Manufactured in stainless steel, the DT-1000MC is not only durable but also highly effective in waste management. The DT-1000MC comes with a wheeled C-1000 container, facilitating easy waste logistics.

More products images

Product Description
The modular design of the DT-1000MC allows for easy source segregation in compliance with MARPOL guidelines. By adding extra containers for different waste categories, you can streamline your waste management process efficiently.

The DT-1000MC can be used as a standalone unit or in combination with other DT1000series products, offering versatility in waste handling. Combining the DT-1000MC waste compactor with a DT-1075SR shredder guarantees extreme volume reduction and significant cost savings in waste management.

We recommend our big bags with inner liner, specially designed for C-1000 container, to ensure prevention of leakage and safe waste deployment.

All Delitek Equipment are equipped with powerful drives to ensures quick and effective waste processing.

The design is based on standard components that a ships engineer can easily deal with in the case something needs to be replaced.
Key Benefits
- Stainless steel units for indoor or outdoor placement.
- Compaction directly into big bags for easy deployment of waste.
- Delitek Products are verified for use in marine and offshore industries by DNV.

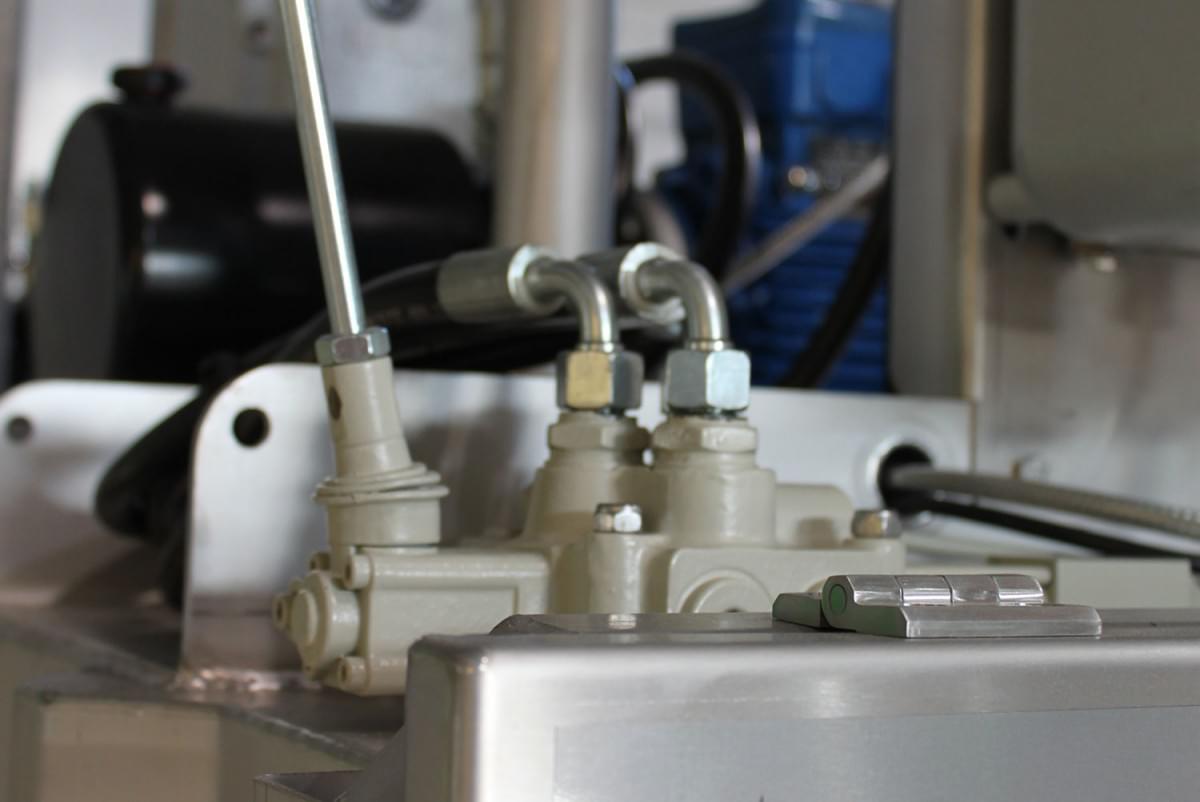

- Powerful electro/hydraulic drive for high press-force.
- Easy installation and operation (Plug & Play).
- Alternative power supply: Pneumatic/hydraulic.
- EX/ATEX version with DNV unit certification available.
Technical Specification
- Material: Stainless steel AISI 304 or AISI 316
- Capacity: 1m3
- Loading opening (W x H)* 1000x244mm/596x433mm
- Compaction force: 12,5 tons
- Dimensions: (WxDxH) 1389x1137x2609mm
- Weight (Inc. container): 472,2 Kg
- Motor voltage: 220V / 380~440V / 480V / 690V, 3Ph, 50~60Hz
- Motor power: <1,8 kW
- Alternative power supply: Pneumatic/Hydraulic
- Noise level. <65dB Max
Downloads
DT-1000MC Drawing (1MB)
DT-1000MC Product Sheet
DT-1000MC – SP2212121122032301
DT-1000MC – Ga (GA2212121113101722021701)
DT-1000MC-P – GA (GA2212121213101722080901)
DT-200MC(P) Waste Compactor Verification report
